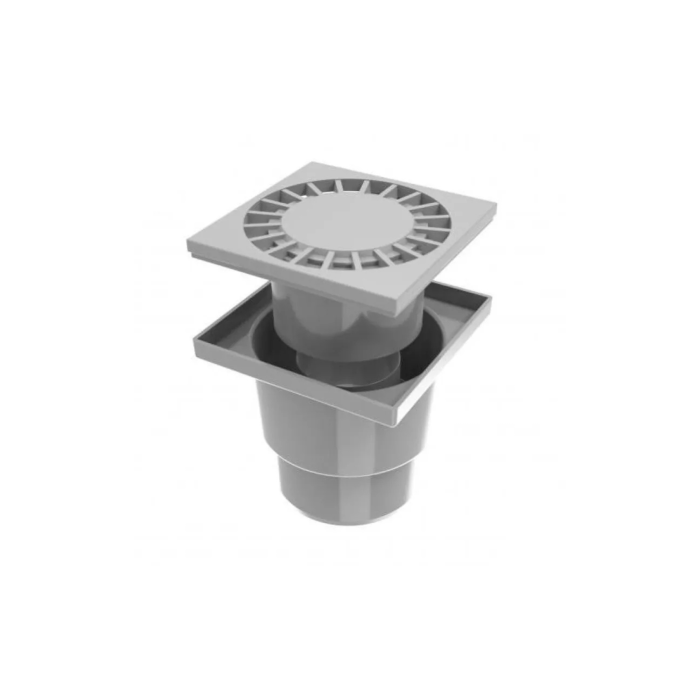

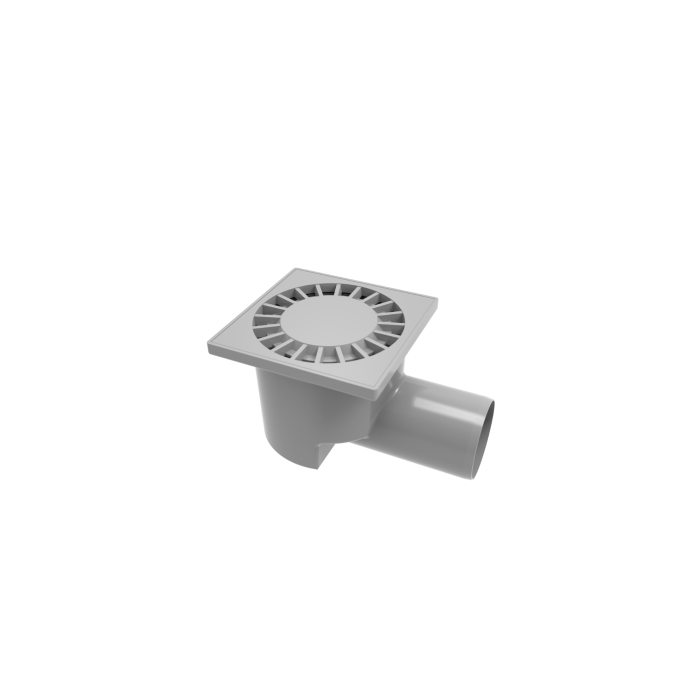

Point drains
Point drains are effective sanitary devices for draining water from floors in bathrooms, showers, and industrial premises. They ensure rapid water drainage, tightness, and protection against unpleasant odors, while their compact design allows them to be easily integrated into any interior.
DRAIN technical specifications:
• Manufacturer: Santehplast.
• Country of manufacture: Ukraine.
• Warranty: 25 years.
• Coating (color): stainless steel and gray plastic.
• Plastic grates: 100×100 mm; 150×150 mm.
• Direct connection to sewer drain Ø50 mm; 110 mm.
• Easy-to-clean manual siphon, all the way to the drain pipe.
• Wet water trap reliably protects against sewer odors, unlike dry traps, which begin to leak unpleasant odors when clogged.
• Material: talc-filled polypropylene (PPR), resistant to mechanical, chemical, and thermal damage.
• High rigidity, impact resistance.
• Operable at temperatures from -50 to +135 °C.
• High resistance to water, antifreeze, acids, alkalis, electrolytes, salt solutions, oils, and polar solvents.
• The material often replaces metal.
• Water flow rate 100 and 150: 46-102 l/min.
• Water seal pressure resistance: 460 Pa.
• Load class K3: 300 kg.
• Drain pipe: 50 mm; 110 mm.
• Body wall thickness: 100-2 mm.
• 150-3 mm.
• Grate thickness: 100×100-6 mm.
• 150×150-9 mm.
Scope of application:
• For bathrooms and other rooms where frequent and regular water drainage is expected.
